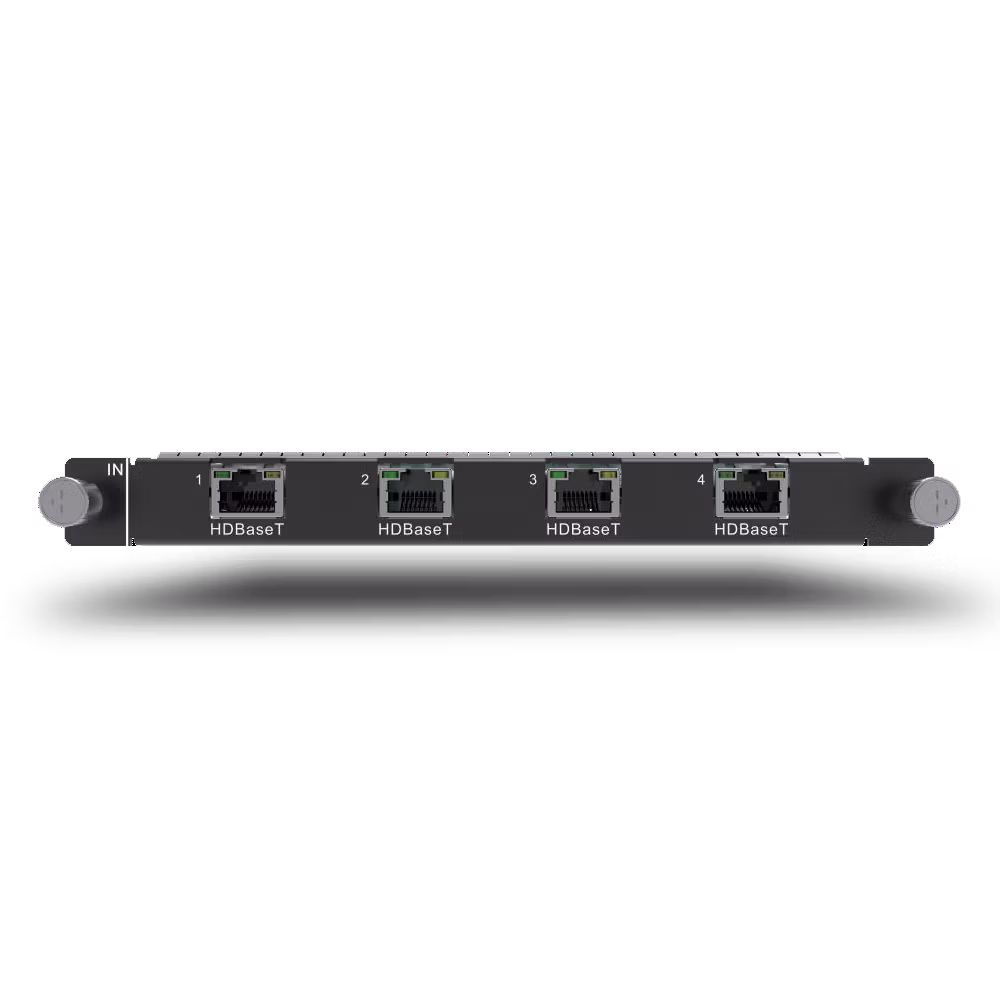

NovaStar H_4xHDBaseT input card

Key Features

• 4x RJ45 Gigabit Ethernet ports
• Support for single link and dual link input modes, and accompanied
  audio
• Single link input:
  • Four connectors are all available for input.
  • Each connector supports the maximum resolution of
    1920×1080@60Hz.
  • Custom resolution:
    • Max. width: 2560 pixels (2560×983@60Hz)
    • Max. height: 2560 pixels (884×2560@60Hz)
  • HDCP 1.4 compliant
• Dual link input:
  • Connector 2 and 4 are available for input.
  • Each connector supports the maximum resolution of 3840×2160@30Hz.
  • Custom resolution:
    • Max. width: 3840 pixels (3840×1202@60Hz)
    • Max. height: 3840 pixels (1092×3840@60Hz)
  • HDCP 1.4 compliant
• Status LEDs:
  • Green: Indicating the input source access status
    • On: The input source is accessed normally.
    • Off: No input source is accessed.
  • Yellow: Indicating the input source status
    • On: The input source is normal.
    • Off: The input source has no signal or the input source is abnormal.
    • Flashing: The connector is in communication.
• Specifications:
  • Weight: 500 g
  • Dimensions: 193 mm × 247.12 mm × 21.15 mm
  • Power consumption: 39 W
