NovaStar MX_1x40G_Fiber output card

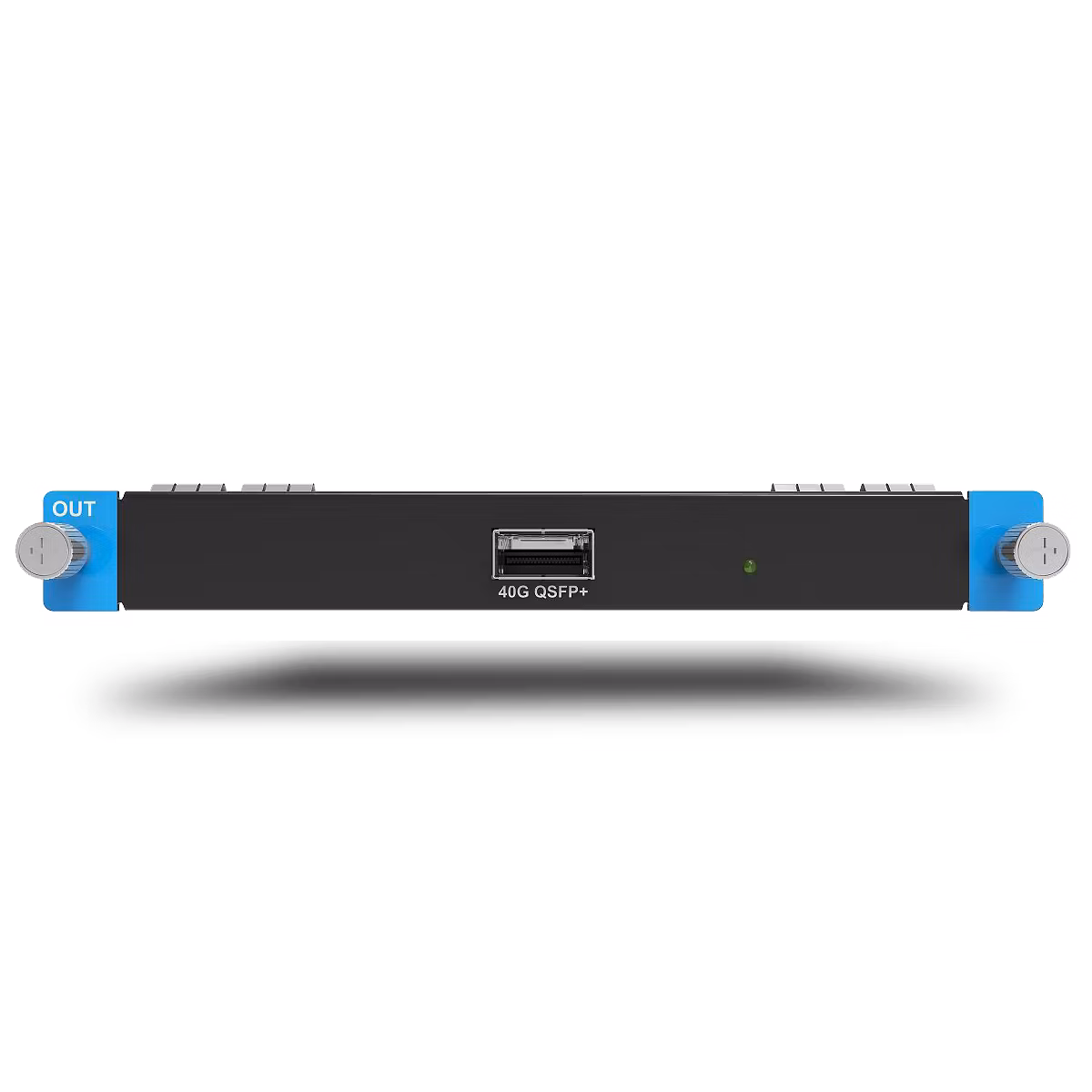

MX_1x40G_Fiber Output Card is a high-performance optical output solution, offering ultra-fast data transmission and extended-distance connectivity. With a 40G QSFP+ optical port, it delivers exceptional load capacity, making it ideal for large-scale LED display applications.

Key Features

40G optical port

• Support single-mode and multi-mode optical fiber modules, with a maximum transmission distance of 10km.
• A single optical port has the same load capacity of 8x 5G Ethernet ports. The maximum load of a single 5G Ethernet port is as follows. Please refer to Ethernet Port Load Capacity for more details:
  • 8bit@60Hz: 2,951,200 pixels
  • 10bit@60Hz: 2,213,200 pixels
  • 12bit@60Hz: 1,475,600 pixels
• Maximum load of a single output card: 17,694,720 pixels (8/10/12bit@60Hz).
