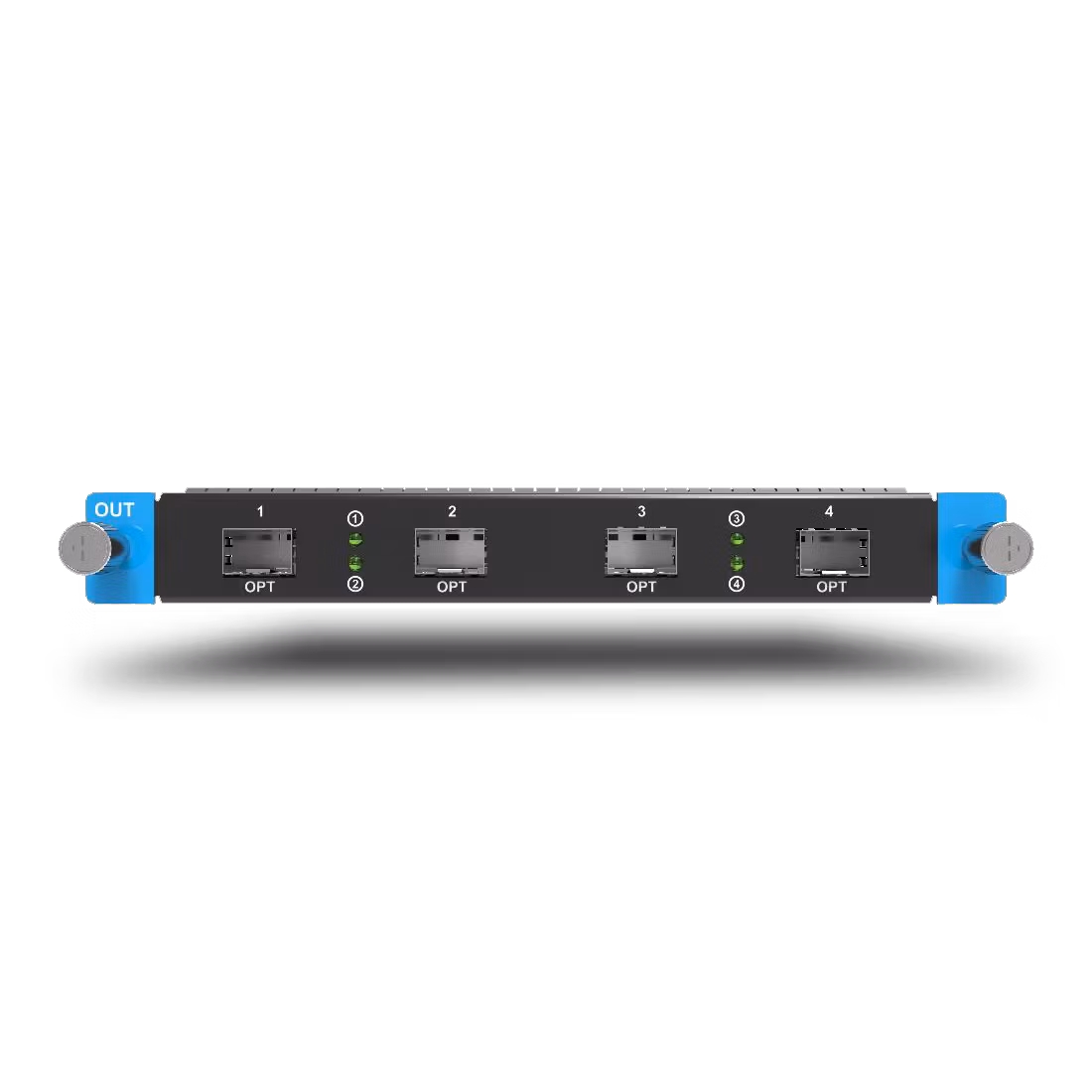

Name: NovaStar MX_4x10G_Fiber output card
SKU: N-78-520-27
Availability: InStock

Descripción

The MX_4x10G_Fiber output card is a cutting-edge networking solution featuring four high-speed 10-gigabit optical ports. Supporting both single-mode and multi-mode optical fiber modules, it ensures reliable data transmission over distances of up to 10 kilometers. Each optical port can accommodate up to 10 channels of 1-gigabit Ethernet ports, offering exceptional scalability. With a maximum output capacity of 40 channels per card, it delivers impressive performance for various applications. Moreover, its exceptional pixel loading capabilities make it suitable for demanding display environments, supporting up to 659,722 pixels at 8-bit color depth and 60Hz refresh rate, or 494,791 pixels at 10-bit color depth and 60Hz refresh rate with compatible receiving cards.

Type

Qty

Description

OPT 1-4

10G optical ports

Support single-mode and multi-mode optical fiber modules, with a maximum transmission distance of 10km.
A single optical port can load up to 10 channels of 1G Ethernet ports, and a single card can support up to 40 channels of Ethernet port output.
The maximum load of a single 1G Ethernet port is as follows:
- 8bit@60Hz: 659,722 pixels
- 10bit@60Hz: 494,791 pixels (available only with the A10s Pro receiving card)
- 10/ 12bit@60Hz: 329,861 pixels
