Descripción

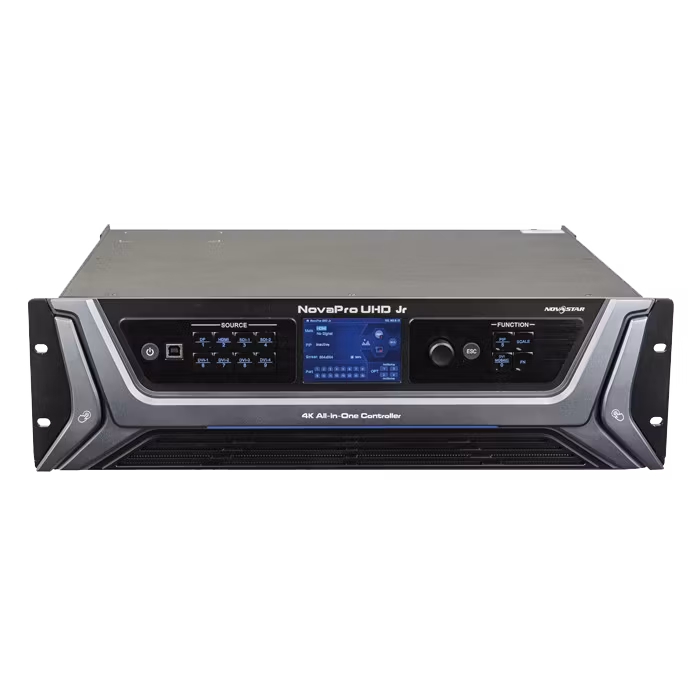

NovaPro UHD Jr is NovaStar’s new all-in-one controller that features excellent video processing capabilities, sending card functions and LED screen configurations. The NovaPro UHD Jr provides a variety of video input connectors, supporting full HD 4K×2K@60Hz image processing and sending capabilities. Additionally, the NovaPro UHD Jr supports 8K×1K@60Hz ultra-high resolution settings.
With the help of smart control software V-Can from Novastar, the NovaPro UHD Jr can enable richer image mosaic effects and faster and easier operations.
The NovaPro UHD Jr can send the processed video to the LED screen via Neutrik Ethernet ports and optical fiber ports. Thanks to its powerful video processing capabilities and sending functions, the NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites and other highend rental applications as well as fine-pitch LED displays.
Key Features
- Inputs
- 4x DVI inputs
- 2x 12G-SDI inputs
- 1x DP 1.2 input
- 1x HDMI 2.0 input
- Outputs
- 16x Ethernet port outputs
- 4x OPT 1-4 outputs
- 1x HDMI 2.0 LOOP output
- 2x 12G-SDI LOOP outputs
- 1x HDMI MONITOR output
Certifications: CE, FCC, UL and CB
NovaStar Video Controller Comparison
| Model |
VX4S-N | VX400 | VX600 | VX1000 | NovaPro UHD Jr |
| Loading Capacity (pixel) | 2,300,000 | 2,600,000 | 3,900,000 | 6,500,000 | 10,400,000 |
| Video Source Depth | 8bit | 8bit | 8bit | 8bit | 8 / 10 / 12bit |
| Maximum Input | Max Width: 3840×657@60Hz Max Height: 1246×1920@60Hz Min: 800×600@60Hz |
Max Width:
3840×648@60Hz |
Max Width:
3840×600@60Hz Max Height: 800×2784@60Hz Min: 800×600@60Hz |
Max Width:
4096×1136@60Hz Max Height: 1060×3981@60Hz Min: 800×600@60Hz |
Max Width:
8192×1080@60Hz Max Height: 1080×8192@60Hz Min: 800×600@60Hz |
|
Maximum Output
|
Max Width:3840
Max Height:1920 |
Max Width:10240
Max Height:8192 |
Max Width:10240
Max Height: 8192 |
Max Width:10240
Max Height: 8192 |
Max Width: 16384
Max Height: 8192 |
|
Video Input
|
1x HDMI
1x DVI
1x VGA 1x CVBS
1x DP 1x SDI
|
2x HDMI1.3
1x DVI
1x 3G-SDI 1x 10G optical fiber port(OPT1) |
2x HDMI1.3
1x DVI
1x 3G-SDI 1x 10G optical fiber port(OPT1) |
2x HDMI1.4
2x DVI
1x 3G-SDI 1x 10G optical fiber port(OPT1) |
1x HDMI2.0
4x DVI
1x DP1.2 2x 12G SDI |
|
Output
|
4x Network Port
1x DVI LOOP 1x SDI LOOP 1x DVI Monitor |
4x Network Port
1x DVI LOOP 1x SDI LOOP 1x HDMI1.3 (Monitor) 1x 10G optical fiber port(OPT2) |
6x Network Port
1x HDMI1.3 LOOP 1x DVI LOOP 1x SDI LOOP 1x HDMI1.3 (Monitor) 1x 10G optical fiber port(OPT2) |
10x Network Port
1x HDMI1.4 LOOP 1x DVI LOOP 1x SDI LOOP 1x HDMI1.3 (Monitor) 1x 10G optical fiber port(OPT2) |
16x Network Port
4x 10G Fiber Output 2x 12G SDI LOOP 1x HDMI2.0 LOOP 1x HDMI (Monitor) |
|
Splicing Loading Capacity
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Max Layers
|
2
|
2
|
3
|
3
|
3
|
|
Max Presets
|
10
|
10
|
10
|
10
|
10
|
|
Knob Brightness Adjustment
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| USB Disk Play On Board | No | No | No | No | No |
| Control Method | USB, TCP/IP | USB, TCP/IP | USB, TCP/IP | USB, TCP/IP | USB, TCP/IP,RS232 |
| Control Protocol | TCP/IP | TCP/IP | TCP/IP | TCP/IP | TCP/IP |
| Control Software | NovaLCT | NovaLCT / V-Can | NovaLCT / V-Can | NovaLCT / V-Can | NovaLCT / V-Can |
