Descripción

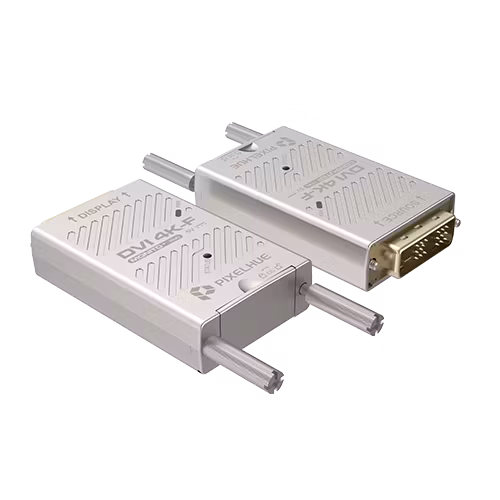

Pixelhue DVI4K-F extender comprises one DVI4K-F transmitter (labeled COMPUTER TX, Source) and one DVI4K-F receiver (labeled MONITOR Rx, Display). Utilizing a DVI-D (18 + 1) media interface, it enables lossless uncompressed video transmission at high speeds of 10G over distances of up to 300m, supporting various optical fiber types (including ITU-T.G652 /G.655 single-mode and OM1 / 2 / 3 / 50um / 125um multimode).
The optical path employs single-fiber bidirectional WDM optical wavelength division multiplexing technology. This ensures electrical isolation between the transmitter and receiver, mitigating noise interference with the grounding circuit and eliminating video signal frame delays. Compared to traditional twisted pair cable transmission, it offers numerous advantages such as no attenuation, strong anti-interference capabilities, enhanced signal confidentiality, high stability, hot swap protection, extended transmission distances, and immunity to signal loss from external environmental factors.
Transmitter (DVI4K-F TX)
Input Signal
| Interface Type | DVI-D(18+1), DVI1.0 |
| Signal Type | DVI 1.0, HDMI 1.4a, up to 4096 × 2160@30Hz |
Output Signal
| Interface Type | LC |
| Signal Type | G.652/G.655/G.657 SMF and 50um/125um, 62.5um/125um OM multimode |
Receiver (DVI4K-F RX)
Input Signal
| Interface Type | LC |
| Signal Type | G.652/G.655/G.657 SMF and 50um/125um, 62.5um/125um OM multimode |
Output Signal
| Interface Type | DVI-D(18+1), DVI1.0 |
| Signal Type | DVI 1.0, HDMI 1.4a, up to 4096 × 2160@30Hz |
| Transmission distance | 300m |
| Data Rate Max. | Max. 3.4Gbps |
| Graphic Data | 340MB/S |
| Optical Rate | 11.5GB/S |
| Power Supply | DC 5V, 2A |
| Weight | 0.56 kg |
| Dimension Length × Width × Height |
90mm × 40mm × 15mm |
| Operation Temperature | -45-70℃ |
| Storage Temperature | 25℃ |
