Description

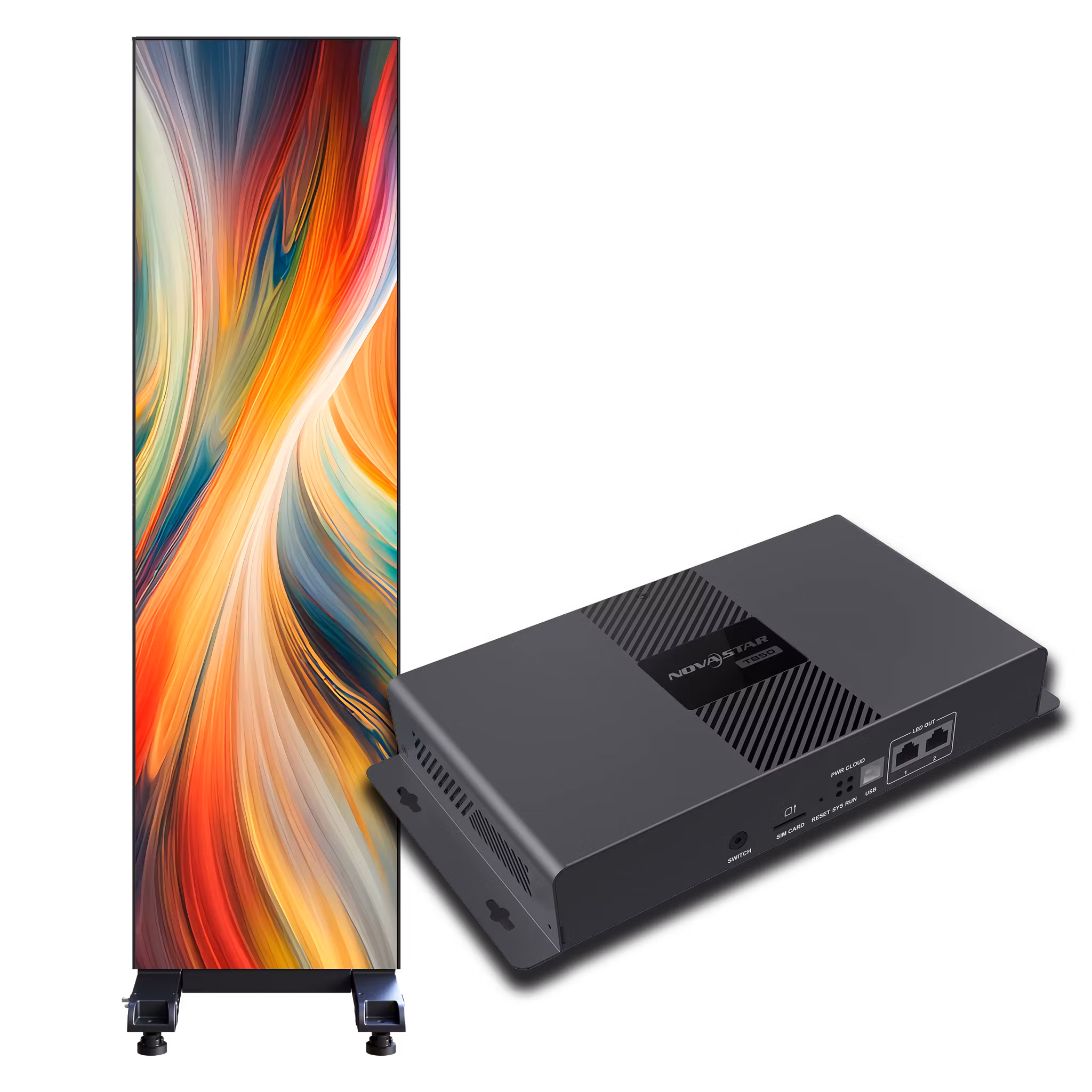

Microbus MiracleWall Poster is a next-generation indoor LED poster display built with advanced COB (Chip-on-Board) technology, delivering exceptional durability, color performance, and crystal-clear visuals. Designed for retail stores, shopping malls, events, showrooms, and public environments, it combines slim Scandinavian design with high-impact digital communication.
With its ultra-slim 33 mm profile, 180° foldable structure, and optional wheels for mobility, MiracleWall Poster is engineered for both permanent installations and temporary campaigns. It offers powerful brightness up to 1000 nits, ensuring strong visibility even in bright indoor spaces such as shop windows and entrances.
Each unit is powered by the NovaStar TB50 Multimedia Player, providing seamless content control, cloud publishing, and professional playback performance.
Datasheet
Key Features
Advanced COB Technology – High Protection & Durability
MiracleWall Poster uses high-performance COB LED modules with a multi-layer protective structure.
-
Front protection rating IP65 (dustproof & waterproof front)
-
Impact-resistant surface
-
Enhanced thermal stability
-
Long product lifespan with consistent image quality
Slim & Elegant Design
-
Only 33 mm thin
-
Lightweight construction (30 kg)
-
Stylish, minimal appearance suitable for modern interiors
180° Foldable Construction
-
Folds completely for space-saving transport and storage
-
Wider viewing experience when unfolded
-
Designed for easy installation and relocation
Mobile & Transport-Ready
-
Optional wheels for smooth mobility
-
Optional flight case (holds two posters)
-
Built-in spare parts storage
-
Fold-down loading ramp for easy roll-in/roll-out handling
-
Dust protection cover for safe transport
Powerful Visual Performance
-
Pixel pitch: 1.56 mm (MWR COB 1.5)
-
Resolution: 320 × 1280
-
Brightness: 600–1000 nits
-
Contrast ratio: 20,000:1
-
Refresh rate: 3840 Hz
-
Greyscale depth: >14 bit
-
Up to 60 FPS
Perfect for high-impact retail campaigns and premium brand presentations.
Fast Multi-Screen Connection
The efficient connection system allows quick splicing of multiple units:
-
Rapid splicing mechanism
-
Recessed hinge for precision alignment
-
Rotary edging for module protection
Use as a standalone digital poster or connect multiple units to create seamless large-format video walls.
Cloud-Powered Intelligence
Manage all displays from a centralized control platform via:
-
Computer
-
Mobile phone
-
Tablet
-
USB
Supports remote publishing and monitoring via cloud control — ideal for multi-location campaigns.
Technical Specifications (MWR COB 1.5)
-
Active display area: 500 × 2000 mm
-
Poster dimensions: 518 × 2140 mm (base width: 588 mm)
-
Weight: 30 kg
-
Operating voltage: AC 100–240V
-
Power consumption (max/typ): 300–360 W/m² ±3% / 120
-
Operating temperature: –20°C to +50°C
-
Humidity range: 10%–95% RH
-
IP rating: IP65 (front) / IP20 (rear)
-
Certifications: CE, EMC
-
Installation type: Front service
Powered by NovaStar TB50
Every MiracleWall Poster includes a NovaStar TB50 Multimedia Player, combining playback and sending functionality in one powerful controller.
Key benefits of TB50:
-
Supports synchronous and asynchronous modes
-
4K video decoding
-
Multi-screen synchronization
-
Cloud-based remote publishing & monitoring
-
32 GB internal storage
-
Quad-core processor
-
Wi-Fi & Ethernet connectivity
-
4G/5G module expansion support
-
Reliable 1.3 million pixel loading capacity
The TB50 ensures stable performance, flexible deployment, and professional-grade control for any installation.
The Complete Digital Signage Solution
The Microbus MiracleWall Poster with NovaStar TB50 is a premium, plug-and-play LED poster solution that combines:
✔ Slim modern design
✔ Advanced COB protection
✔ Foldable & transport-friendly construction
✔ Fast multi-screen scalability
✔ Cloud-based remote control
✔ High brightness & exceptional image quality
A future-ready LED display designed to deliver maximum visual impact with minimum complexity.
