Description

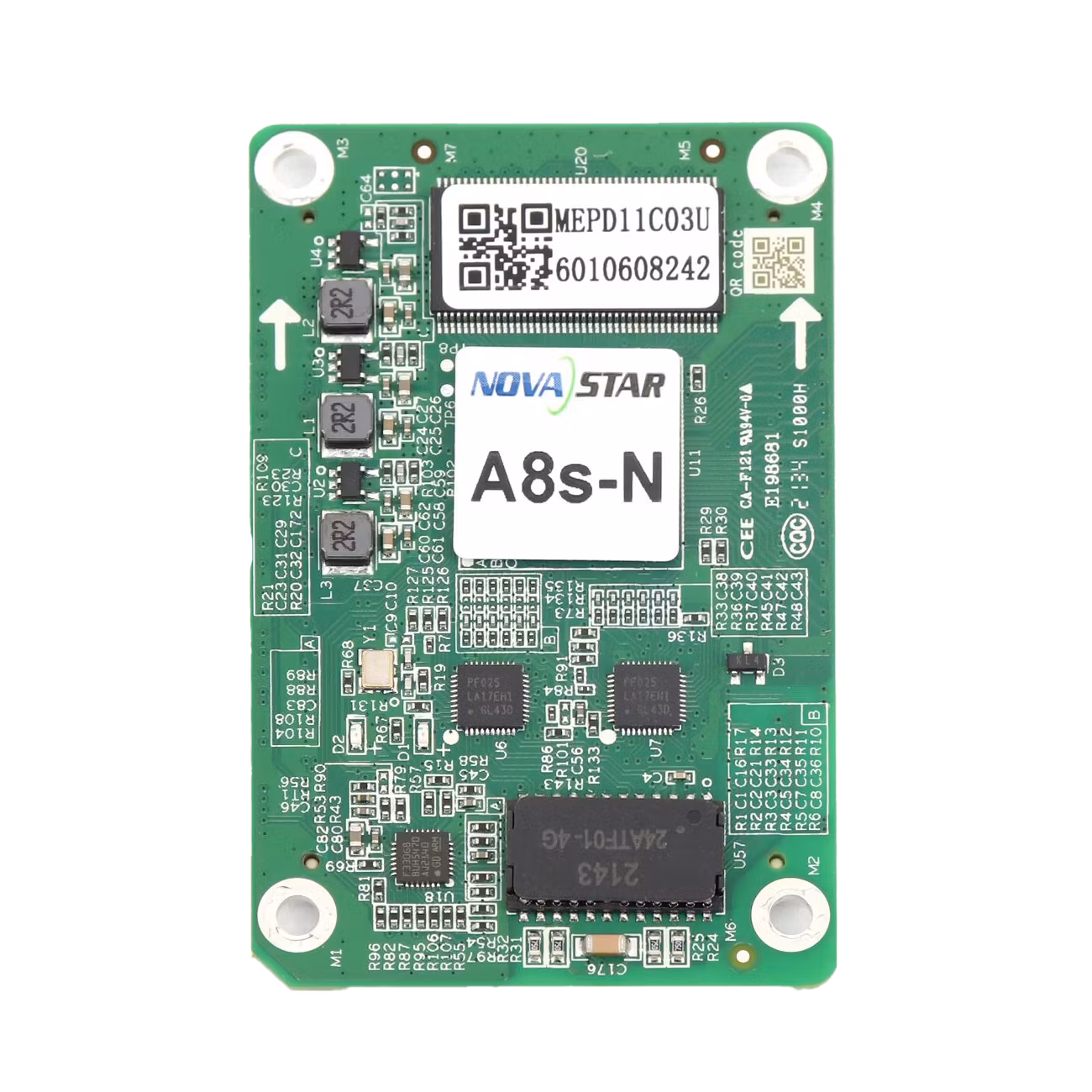

NovaStar A8s is a high-end, full-featured small receiving card, designed to provide an exceptional visual experience. Supporting resolutions up to 512×384@60Hz for PWM driver ICs and 384×384@60Hz for common driver ICs, the A8s leverages NovaStar’s exclusive Image Booster technology to precisely calibrate color gamut and grayscale, enhancing the grayscale by 64 times. This advanced technology supports pixel-level brightness and chroma calibration, individual gamma adjustment for RGB, low latency, 3D, and HDR functions, ensuring superior brightness, grayscale, and color performance.
Key Features
- Image Booster Technology: Enhances display effect by precisely calibrating color gamut and grayscale, improving grayscale by 64 times.
- Pixel-Level Calibration: Supports pixel-level brightness and chroma calibration, ensuring uniform and lifelike images.
- Advanced Display Functions: Includes individual gamma adjustment for RGB, low latency, 3D, HDR, and image rotation in 90° increments.
- High Stability: Utilizes high-density connectors to limit the effects of dust and vibration, ensuring reliable performance.
- Large Data Support: Supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data).
- EMC Class B Compliance: Improved electromagnetic compatibility, suitable for various high-requirement on-site setups.
- Certifications: RoHS and EMC Class B certified, ensuring compliance with international standards.
NovaStar Armor Series Receiving Cards Comparison
| Model | A5s Plus | A7s Plus | A8s-N | A10s Plus-N | A8s Pro | A10s Pro | |
| Loading capacity (pixel) | 512×384 | 512×512 | 512×384 | 512×512 | 512×512 | 512×512 | |
| Max. parallel RGB data groups | 32 | 32 | 32 | 32 | 40 | 32 | |
| Max. serial data groups | 64 | 64 | 64 | 64 | 64 | 64 | |
| HDR | No | No | Yes | Yes | Yes | Yes | |
| Mapping | Yes | Yes | Yes | Yes | Yes | Yes | |
| Temperature, voltage and communication status monitoring | Yes | Yes | Yes | Yes | Yes | Yes | |
| Dual-card backup | Yes | Yes | Yes | Yes | Yes | Yes | |
| Automatic calibration | Yes | Yes | Yes | Yes | Yes | Yes | |
| Pixel level brightness and chroma calibration | Yes | Yes | Yes | Yes | Yes | Yes | |
| Calibration coefficient backup | No | No | Yes | Yes | Yes | Yes | |
| Firmware program readback | Yes | Yes | Yes | Yes | Yes | Yes | |
| Low latency | Yes | Yes | Yes | Yes | Yes | Yes | |
| Image Booster Engine |
18bit+ | Yes | Yes | Yes | Yes | Yes | Yes |
| 22bit+ | No | No | Yes | Yes | Yes | Yes | |
| Precise Grayscale | No | No | Yes | Yes | Yes | Yes | |
| Color Management | Yes | Yes | Yes | Yes | Yes | Yes | |
| Dynamic Booster | No | No | No | No | No | Yes (with MX40 Pro) | |
| Full grayscale calibration | No | No | No | No | Yes | Yes | |
| Current Dimming | No | No | No | No | No | Yes | |
| Shutter Fit | No | No | No | No | No | Yes (with MX40 Pro) | |
| 3D | Yes | Yes | Yes | Yes | Yes | Yes | |
