Description

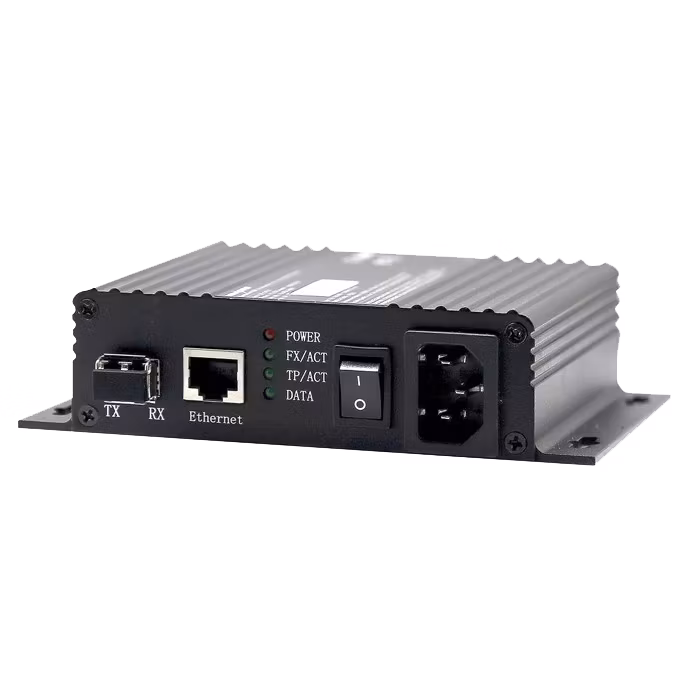

NovaStar CVT320 is a fiber converter used for conversion between optical signals and electrical signals. It is ready to use once it is connected, with no drivers required.
Key Features
- 1x Gigabit Ethernet port
- 1x Single-mode twin-core LC optical port with an optical module installed at the factory
- Optical port: 1.25 Gb/s rate, 1310 nm wavelength, up to 15 km transmission distance, hot pluggable
Certifications: KC, CE, RoHS, PSE, EAC, FCC, IC
NovaStar Fiber Converter Comparison
| Model | CVT310 | CVT320 | CVT10-S | CVT10-M | CVT10 Pro-S | CVT10 Pro-M | CVT4K-S | CVT4K-M |
| Optical module | Multi-mode | Single-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode |
| Number of optical ports | 1 | 1 | 2 | 2 | 2 | 2 | 4 | 4 |
| Optical Fiber Bandwidth | 1.25G | 1.25G | 10G | 10G | 10G | 10G | 10G | 10G |
| Optical Fiber Backup | None | None | OPT1 Primary OPT2 Backup |
OPT1 Primary OPT2 Backup |
OPT1 Primary OPT2 Backup |
OPT1 Primary OPT2 Backup |
OPT1&2 Primary OPT3&4 Backup |
OPT1&2 Primary OPT3&4 Backup |
| Optical fiber format | Multi-mode twin-core LC optical ports |
Single-mode twin-core LC optical ports |
Single-mode twin-core LC optical ports |
Multi-mode twin-core LC optical ports |
Single-mode twin-core LC optical ports |
Multi-mode twin-core LC optical ports |
Single-mode twin-core LC optical ports |
Multi-mode twin-core LC optical ports |
| Number of network ports | 1 | 1 | 10 | 10 | 10 | 10 | 16 | 16 |
| Transmission distance | 300 Meters | 15 Km | 10 Km | 300 Meters | 10 Km | 300 Meters | 10 Km | 300 Meters |
| Network port format | Ethernet Gigabit ports | Ethernet Gigabit ports | Ethernet Gigabit ports | Ethernet Gigabit ports | Neutrik Ethernet Gigabit ports |
Neutrik Ethernet Gigabit ports |
Neutrik Ethernet Gigabit ports |
Neutrik Ethernet Gigabit ports |
| Power Supply | 3-Pin Power Socket | 3-Pin Power Socket | PowerCON | PowerCON | PowerCON | PowerCON | PowerCON / 3-Pin Power Socket |
PowerCON / 3-Pin Power Socket |
| Dual power supply backup | No | No | No | No | No | No | Yes | Yes |
| Control method | None | None | type-B USB | type-B USB | type-B USB | type-B USB | type-B USB / Ethernet | type-B USB / Ethernet |
| Number of SFP modules come with the device |
1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
