Description

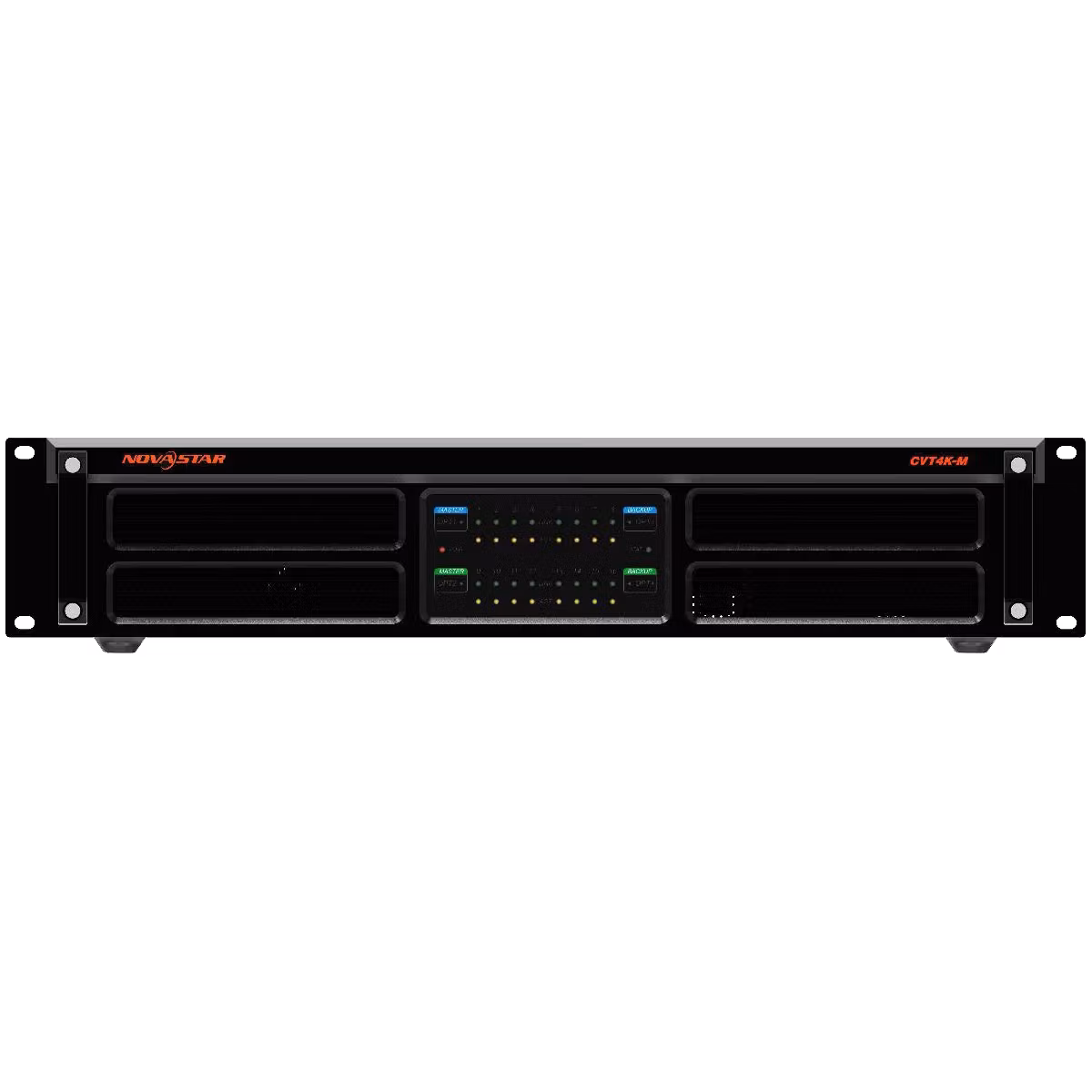

NovaStar CVT4K-M is a high-performance fiber converter. It is used for conversion between optical signals and electrical signals, allowing for long-distance signal transmission that is stable and not easily interfered with. Easy to use, the CVT4K-M makes it convenient to connect terminal devices and simplifies on-site wiring connections.
Key Features
- 16x Neutrik Ethernet inputs or outputs
- 4x Multi-mode twin-core LC optical ports, two as master inputs or outputs and the others as backup
- Dual redundant power supplies, more stable and reliable
- 2 types of power connectors (3-pin power socket and PowerCON), satisfying different customer needs
- 2 types of control ports (type-B USB and Ethernet), more flexible and convenient to connect a control computer
- Various indicators on the front panel to show device status clearly
Certifications: CE, RoHS, FCC, UL&CUL, EAC, CB, IC, RCM
NovaStar Fiber Converter Comparison
| Model | CVT310 | CVT320 | CVT10-S | CVT10-M | CVT10 Pro-S | CVT10 Pro-M | CVT4K-S | CVT4K-M |
| Optical module | Multi-mode | Single-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode |
| Number of optical ports | 1 | 1 | 2 | 2 | 2 | 2 | 4 | 4 |
| Optical Fiber Bandwidth | 1.25G | 1.25G | 10G | 10G | 10G | 10G | 10G | 10G |
| Optical Fiber Backup | None | None | OPT1 Primary OPT2 Backup |
OPT1 Primary OPT2 Backup |
OPT1 Primary OPT2 Backup |
OPT1 Primary OPT2 Backup |
OPT1&2 Primary OPT3&4 Backup |
OPT1&2 Primary OPT3&4 Backup |
| Optical fiber format | Multi-mode twin-core LC optical ports |
Single-mode twin-core LC optical ports |
Single-mode twin-core LC optical ports |
Multi-mode twin-core LC optical ports |
Single-mode twin-core LC optical ports |
Multi-mode twin-core LC optical ports |
Single-mode twin-core LC optical ports |
Multi-mode twin-core LC optical ports |
| Number of network ports | 1 | 1 | 10 | 10 | 10 | 10 | 16 | 16 |
| Transmission distance | 300 Meters | 15 Km | 10 Km | 300 Meters | 10 Km | 300 Meters | 10 Km | 300 Meters |
| Network port format | Ethernet Gigabit ports | Ethernet Gigabit ports | Ethernet Gigabit ports | Ethernet Gigabit ports | Neutrik Ethernet Gigabit ports |
Neutrik Ethernet Gigabit ports |
Neutrik Ethernet Gigabit ports |
Neutrik Ethernet Gigabit ports |
| Power Supply | 3-Pin Power Socket | 3-Pin Power Socket | PowerCON | PowerCON | PowerCON | PowerCON | PowerCON / 3-Pin Power Socket |
PowerCON / 3-Pin Power Socket |
| Dual power supply backup | No | No | No | No | No | No | Yes | Yes |
| Control method | None | None | type-B USB | type-B USB | type-B USB | type-B USB | type-B USB / Ethernet | type-B USB / Ethernet |
| Number of SFP modules come with the device |
1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
