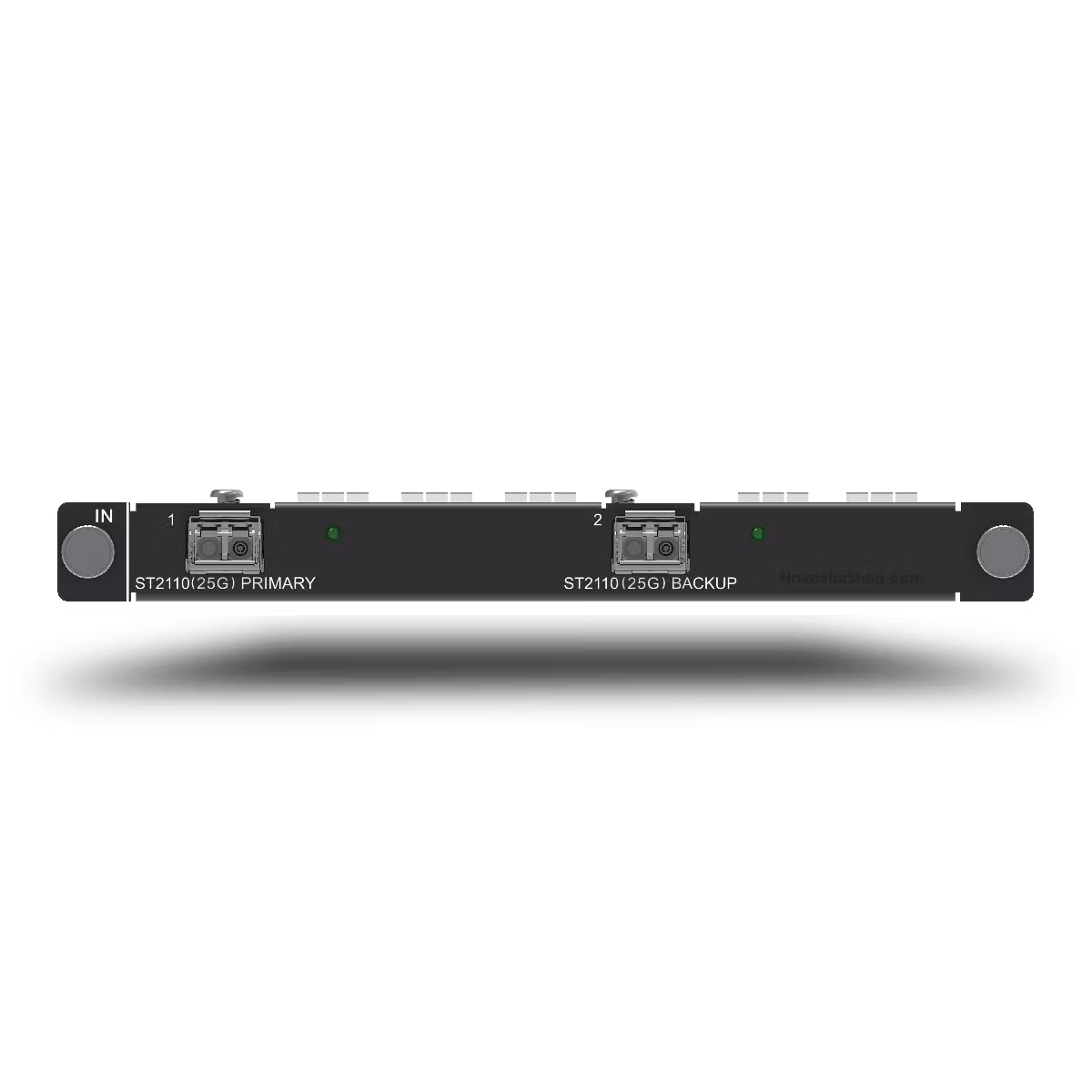

NovaStar H_1xST2110 input card

2x 25G OPT ports

• OPT 1 is used for primary input.
• OPT 2 serves as the backup of OPT 1.
• The primary input supports SMPTE ST 2110 (-10, 20) and SMPTE 2059 (-1, -2) standards.
• The backup input supports SMPTE 2022-7 standard.
• Supports VESA standard video inputs with the maximum resolution of 4096×2160@60Hz
• Supports 8-bit/10-bit 4:4:4/4:2:2 inputs.
• Supports automatic identification of input source resolution and color space.
• Supports loading video stream configuration by SDP file or directly inputting.
• Supports BT.601/BT.709/BT.2020 inputs.
• Supports data transmission via 25 GbE IEEE 802.3cc (25GBASE-LR) and 25 GbE IEEE 802.3by (25GBASE-SR) standards.
• Supports IGMPv2 and IGMPv3 multicast protocols.
• Supports IPv4 dynamic addressing of the connector IP address and transmission of the static IP address.
• Input resolution settings are not allowed.
• Does not support interlaced signal inputs.

Status LEDs:

• On: The corresponding port has a signal.
• Off: The corresponding port has no signal.

Specifications:

• Weight: 500 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power consumption: 42 W

Notes:

• As it takes time for the connector to obtain the image, please do not repeatedly plug and unplug the connector in a short period of time.
• Two 25 G optical modules are included with the card and are already installed into the OPT ports.
