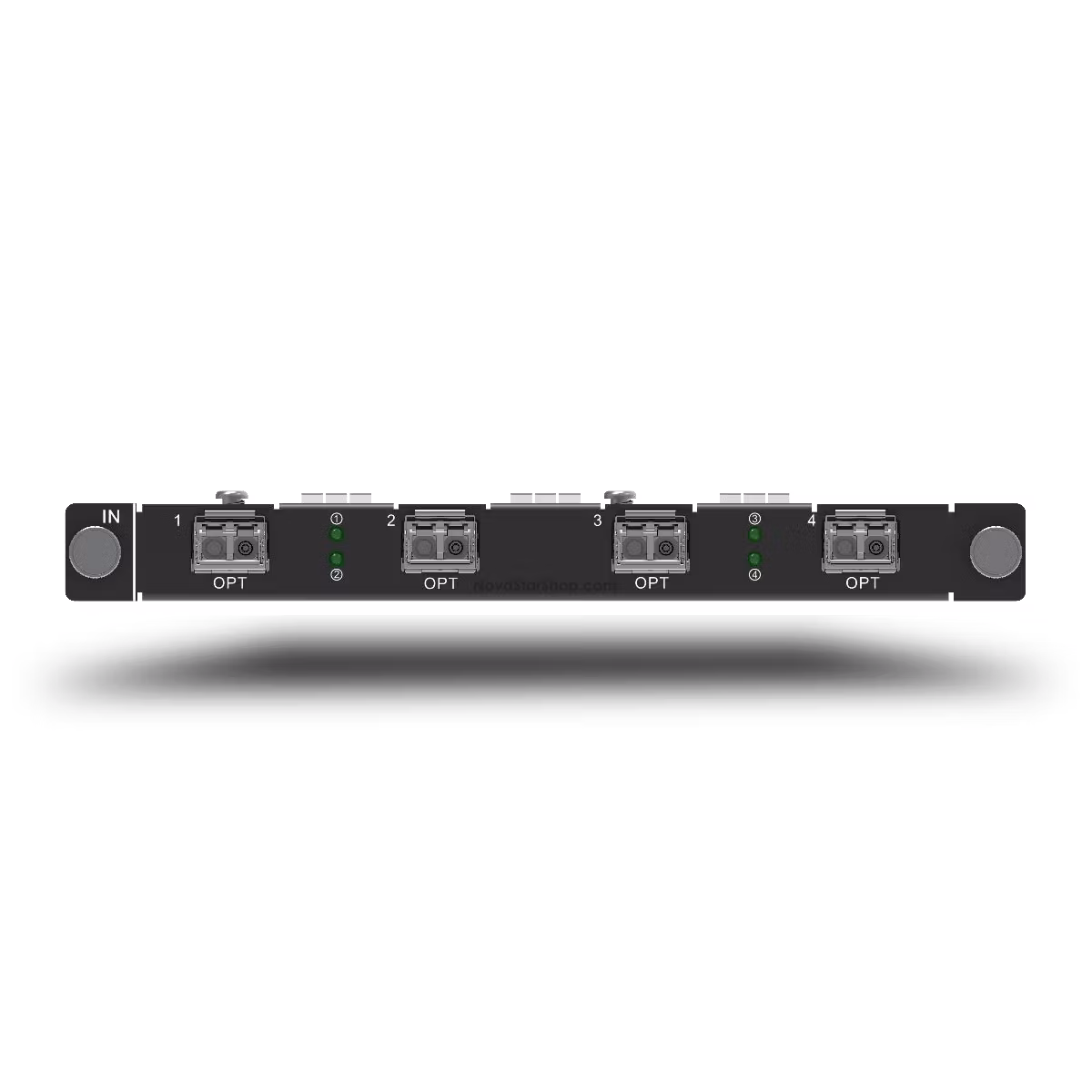

NovaStar H_4xfiber input card

4x 10G OPT ports

• Each connector supports the maximum resolution of 4096×2160@30Hz.
• Each connector supports up to 2x SL inputs or 1x DL input.
• Suppports input mosaic.
• Supports two input modes: independent and mosaic modes.
• Supports automatic identification of input source resolution and color space.
• Supports 144Hz input.
• The optical module supports SFP+ encapsulation. The supported module specifications include the followings:
  • Multi mode optical module: 10G SFP+ SR optical module
  • Single mode optical module: 10G SFP+ LR optical module
• Input resolution settings are not allowed.
• In Independent mode, only two OPT ports (either OPT 1~2 or OPT 3~4) can be used for SL input.

Status LEDs:

• On: The corresponding port has a signal.
• Off: The corresponding port has no signal.

Specifications:

• Weight: 500 g
• Dimensions: 193 mm × 247.12

Notes:

• For the H_4xfiber input card, four 10G SFP+ LR optical modules are included with the card and are already installed into the OPT ports.
• For the H_4xfiber input card-M, four 10G SFP+ SR optical modules are included with the card and are already installed into the OPT ports.
