Description

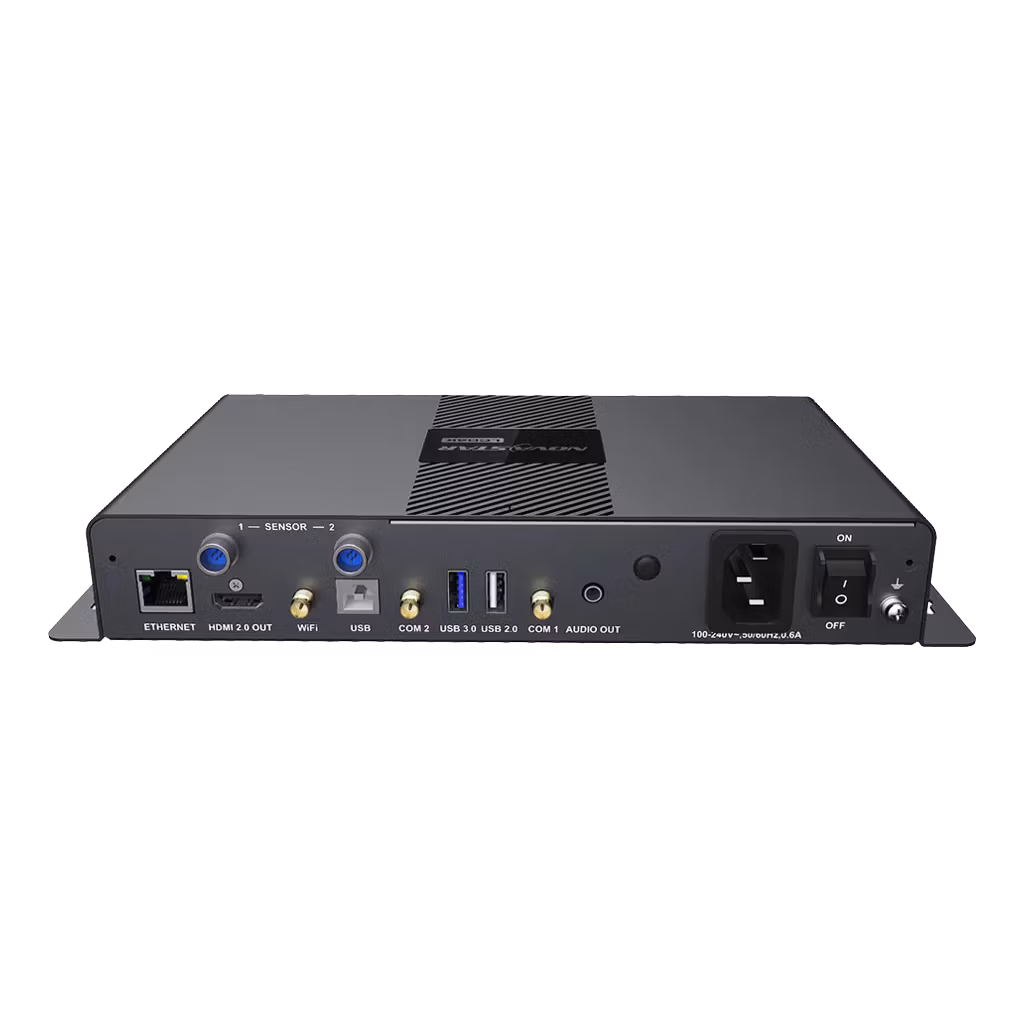

NovaStar LCB4K is an LCD multimedia player. This multimedia player applies to LCD and LED displays in advertising media, digital signage, commercial display and other fields.

Key Features

Output
- 1x HDMI 2.0 connector
  - Adaptive mode: The LCB4K automatically adjusts the playback window resolution according to the EDID of the LCD display.
  - Custom mode: The user manually sets the playback window resolution.
- 1x Stereo audio connector. The audio sample rate of the internal source is fixed at 48 kHz.
Control
- 1x USB 3.0 (Type A) port. Allows for USB playback and firmware upgrade over USB, and cascades a sending device for control.
- 1x USB 2.0 (Type A) port. Allows for USB playback and firmware upgrade over USB, and cascades a sending device for control.
- 1x USB 2.0 (Type B) port. Connects to the control computer for content publishing and screen control.
- 1x Gigabit Ethernet port. Connects to the control computer or connects to a LAN or public network for content publishing and screen control.
Performance
- Powerful processing capacity
  - Quad-core ARM A55 processor @1.8 GHz
  - Support for H.264/H.265 4K@60Hz video decoding
  - 2 GB of RAM
  - 32 GB of internal storage
- Flawless playback. Supports playback of 2x 4K, 6x 1080p, 10x 720p, or 20x 360p videos.
Functionality
- All-round control plans
  - Allows users to publish content and control screens from a computer, mobile phone, or tablet.
  - Allows users to publish content and control screens from anywhere, anytime.
  - Allows users to monitor screens from anywhere, anytime.
- Switching between Wi-Fi AP and Wi-Fi STA
  - In Wi-Fi AP mode, the user terminal connects to the built-in Wi-Fi hotspot of the LCB4K. The default SSID is “AP+Last 8 digits of SN” and the default password is printed on the SSID label of the product.
  - In Wi-Fi STA mode, the user terminal and the LCB4K are connected to the Wi-Fi hotspot of a router.
- Synchronous playback across multiple screens (Playback limit: 1x 4K video)
  - NTP time synchronization
  - GPS time synchronization (The specified 4G module must be installed.)
  - RF time synchronization (The specified RF module must be installed.)
- Support for 4G/5G modules The LCB4K ships without a 4G/5G module. Users have to purchase 4G/5G modules separately if needed. Currently only the 5G networks in China can be accessed. Network connection priority: Wired network > Wi-Fi network > 4G/5G network. When multiple types of networks are available, the LCB4K will choose a signal automatically according to the priority.
