Description

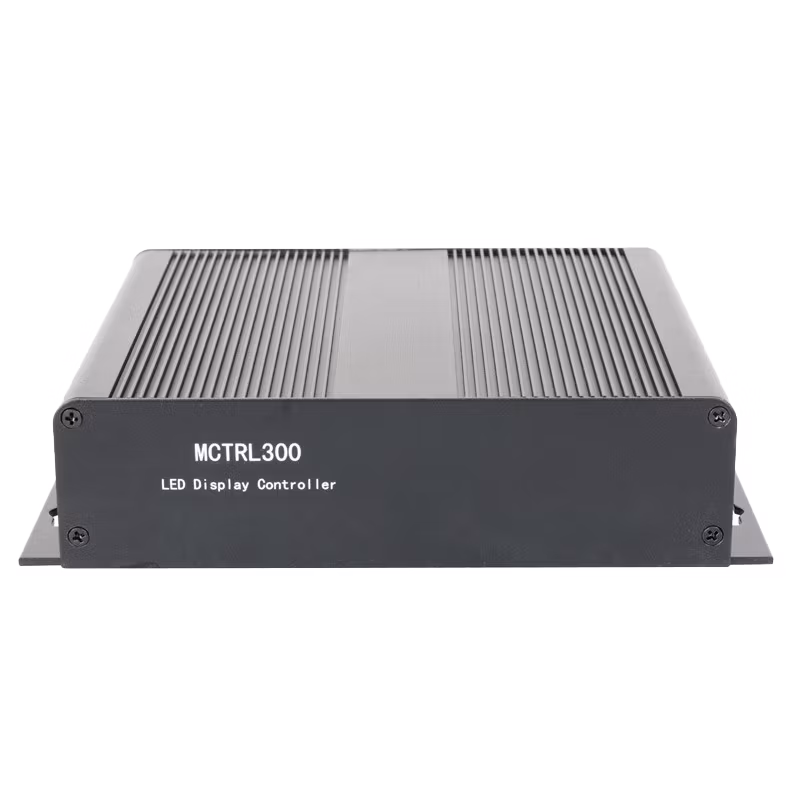

NovaStar MCTRL300 is a sophisticated LED display controller. Designed with precision, this controller effortlessly supports 1x DVI input, 1x audio input, and delivers stunning output through 2x Ethernet ports. With a resolution support of up to 1920×1200@60Hz, the MCTRL300 guarantees sharp and vibrant visuals for a wide array of applications.
Application Scenarios:
The MCTRL300 is the epitome of versatility, making it ideal for both rental and fixed installation applications. Whether it’s a dynamic live event, a vigilant security monitoring center, or a vibrant sports arena, the MCTRL300 delivers unparalleled performance.
Advanced Video and Audio Support:
As part of the M3 series independent controllers, the MCTRL300 ensures seamless integration of video and audio inputs. With robust decoding and data processing capabilities, this controller transforms your content into captivating visual displays and immersive audio experiences. Enjoy resolutions of up to 2048×668@60Hz, pushing the boundaries of what LED displays can achieve.
User-Friendly Communication:
Interact effortlessly with the MCTRL300 through its USB port, providing a convenient and user-friendly interface with your computer. Whether you’re managing live events, monitoring security feeds, or enhancing sports center displays, the MCTRL300 simplifies your control experience.
Key Features
-
Versatile Connectivity:
- 1x SL-DVI input for seamless video integration.
- 1x AUDIO input for synchronized audio experiences.
- 2x Gigabit Ethernet outputs for reliable data transmission.
-
Intuitive Control:
- 1x Light sensor connector for automatic adjustments.
- 1x Type-B USB control port for convenient communication with your PC.
- 2x UART control ports for cascading multiple devices, supporting up to 20 units for expanded applications.
-
Pixel-Perfect Calibration:
- Achieve impeccable brightness and chroma calibration at the pixel level.
- Work seamlessly with NovaLCT and NovaCLB for precise adjustments, eliminating color discrepancies and enhancing overall LED display quality.
Certifications: EAC, RoHS, CE, FCC, IC, PFOS, CB
NovaStar LED Controller Comparison
| Model | MCTRL300 | MCTRL600 | MCTRL660 | MCTRL660 Pro | MCTRL700 | MCTRL R5 | MCTRL4K |
| Loading Capacity (pixel) | 1,300,000 | 2,300,000 | 2,300,000 | 2,300,000 | 2,300,000 | 4,140,000 | 8,800,000 |
| Video Source Depth | 8bit | 8 / 10 / 12bit | 8 / 10 / 12bit | 8 / 10 / 12bit | 8bit | 8 / 10bit | 8 / 10 / 12bit |
| Maximum Input | Max Width: 3840×600@60Hz Max Height: 548×3840@60Hz Min: 800×600@60Hz |
Max Width: 3840×600@60Hz Max Height: 548×3840@60Hz Min: 800×600@60Hz |
Max Width: 3840×600@60Hz Max Height: 548×3840@60Hz Min: 800×600@60Hz |
Max Width: 3840×600@60Hz Max Height: 800×2560@60Hz Min: 800×600@60Hz |
Max Width: 3840×600@60Hz Max Height: 548×3840@60Hz Min: 800×600@60Hz |
Max Width: 3840×1080@60Hz Max Height: 800×3840@60Hz Min: 800×600@60Hz |
Max Width: 7680×1080@60Hz Max Height: 1080×7680@60Hz Min: 800×600@60Hz |
| Video Input | 1x DVI | 1x DVI 1x HDMI |
1x HDMI / DVI 1x HDMI LOOP 1x DVI LOOP |
1x DVI IN 1x DVI LOOP 1x HDMI IN 1x HDMI LOOP 1x 3G-SDI IN 1x 3G-SDI LOOP |
1x DVI 1x DVI OUT 1x HDMI 1x HDMI LOOP |
1x 6G-SDI 1x HDMI1.4 2x Dual DVI |
1x DP1.2 1x HDMI2.0 2x Dual DVI |
| Audio Input | 1x 3.5mm Audio Port | 1x 3.5mm Audio Port HDMI Audio |
1x 3.5mm Audio Port HDMI Audio |
None | 1x 3.5mm Audio Port HDMI Audio |
None | None |
| Control Method | 1x USB | 1x USB | 1x USB | 1x ETHERNET 1x USB IN 1x USB OUT |
1x USB RJ45 IN RJ45 OUT |
1x ETHERNET 1x USB IN 1x USB OUT |
1x USB 1x Network Port |
| Output | 2x Network Port | 4x Network Port | 4x Network Port | 6x Network Port 2x Fiber Output |
6x Network Port | 8x Network Port 2x Fiber Output |
16x Network Port 4x Fiber Output |
| Light Sensor | 1x Light Sensor Port | 1x Light Sensor Port | None | None | None | None | None |
| LCD Control Panel | No | No | Yes | Yes | No | Yes | Yes |
| LAN Debugging | No | No | No | Yes | No | Yes | Yes |
| Hardware Brightness & Color Adjustment | No | No | Yes | Yes | No | Yes | Yes |
| Low Latency | No | No | No | Yes | No | No | Yes |
| 3D | No | No | No | No | No | No | Yes |
| Free Rotation | No | No | No | No | No | Yes (With A8s-N/A10s Plus-N) | No |
| Mirror Image | No | No | No | Yes | No | No | No |
| GENLOCK | No | No | No | Yes | No | Yes | Yes (Offset Adjustable) |
| HDR | No | No | No | No | No | No | Yes |
| Optical Fiber Port | No | No | No | Yes | No | Yes | Yes |
| Sync Splice Mode | No | No | No | No | No | No | Yes |
| Control Software | NovaLCT | NovaLCT | NovaLCT | NovaLCT | NovaLCT | NovaLCT | NovaLCT |
