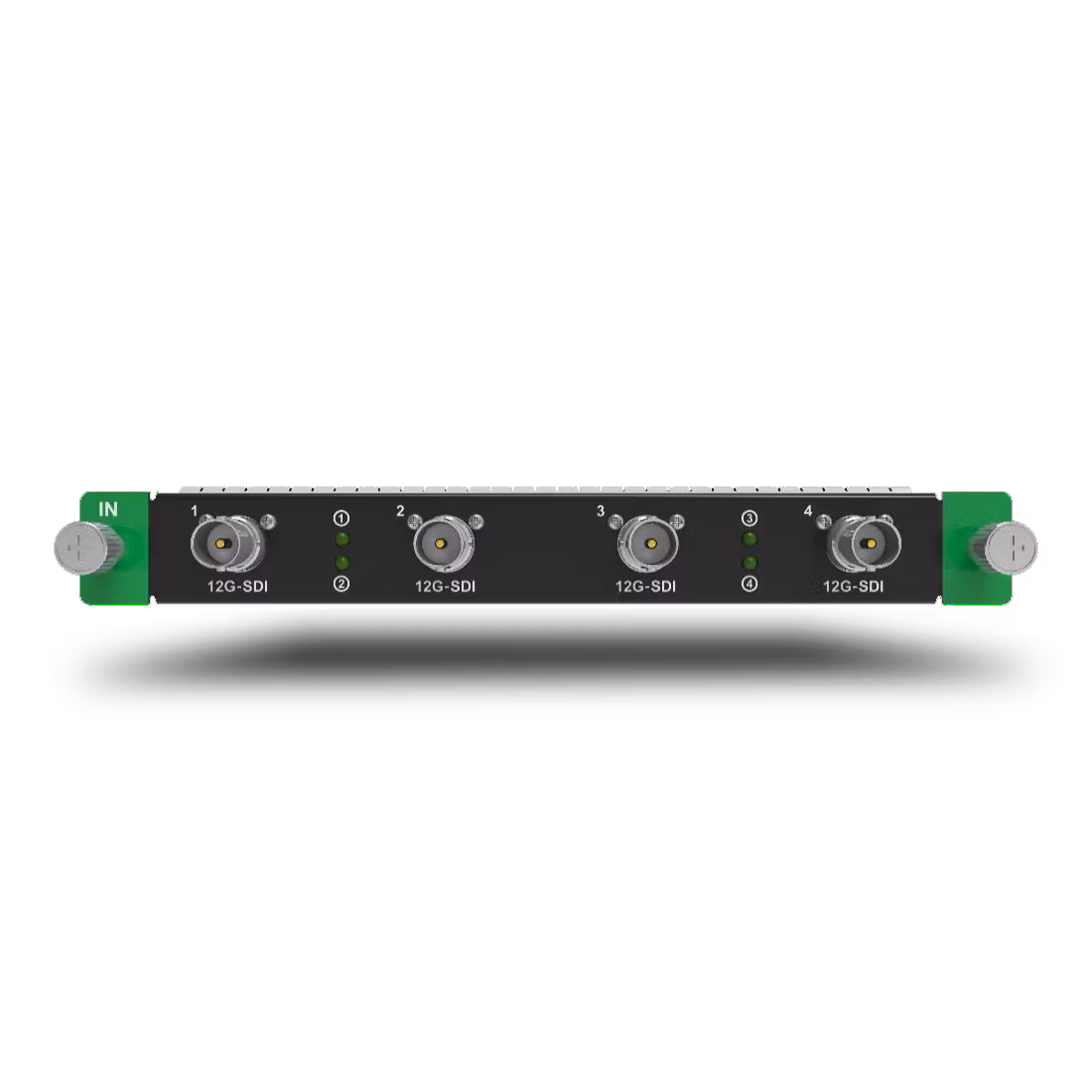

The MX_4x12G-SDI input card offers four 12G-SDI ports, supporting ST-2082 (12G) and other industry standards for versatile video input. It captures high-resolution content up to 4096×2160@60Hz and supports frame rates up to 60Hz. With HDR10 compliance and HLG support, it delivers vibrant imagery. The card seamlessly converts interlaced signals to progressive and recommends Belden 12G SDI cables for optimal performance, supporting cable lengths of up to 50 meters.
Type
Qty
Description
12G-SDI
4
Standards
Support ST-2082 (12G), ST-2081 (6G), ST-424 (3G) and ST-292 (HD) standard video inputs. Support 3G-Level A/Level B (DS mode).
Resolution
Max resolution: 4096×2160@60Hz
Frame rates
Support frame rates up to 60Hz.
HDR
Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards. Support HLG.
Interlaced signal inputs
Support converts interlaced signals to progressive signals.
Other
Belden 12G SDI standard cables are recommended. Cables up to 50 meters are supported.
