Description

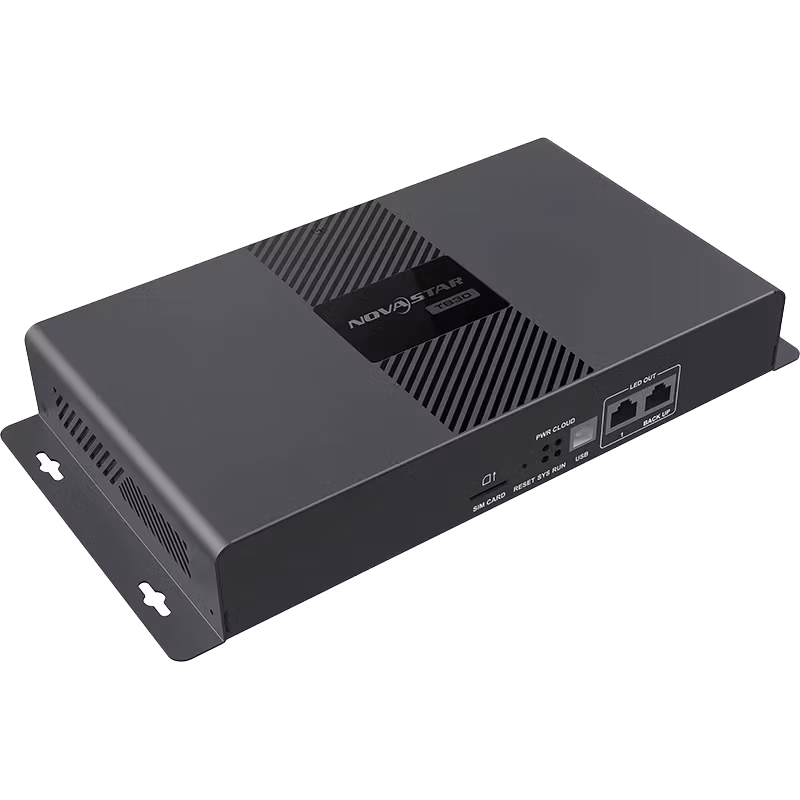

NovaStar TB30 is a new generation of multimedia player created for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB30 enables users to manage LED displays from an Internet-connected device anywhere, anytime.
Thanks to its reliability, ease of use, and intelligent control, the TB30 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, shelf displays, and much more.
Key Features
- Output:
- Loading capacity up to 650,000 pixels with maximum dimensions of 4096×4096
- 2x Gigabit Ethernet ports, one as primary and the other as backup
- 1x Stereo audio connector with fixed internal sample rate and variable external sample rates
- Input:
- 2x Sensor connectors for brightness or environmental sensors
- Control:
- 1x USB 3.0 (Type A) port for USB playback and firmware upgrades
- 1x USB (Type B) port for control computer connection
- 1x Gigabit Ethernet port for control computer or network connection
- Performance:
- Quad-core ARM A55 processor @1.8 GHz, supporting H.264/H.265 4K@60Hz video decoding
- 1 GB RAM, 16 GB internal storage
- Flawless playback up to 2x 4K, 6x 1080p, 10x 720p, or 20x 360p videos
- Functionality:
- All-round control plans for content publishing and screen control from various devices
- Switching between Wi-Fi AP and Wi-Fi STA modes for flexible connectivity
- Synchronous playback across multiple screens with various time synchronization methods
- Support for optional 4G modules with network connection priority hierarchy
Certficiations: NBTC, IMDA, PSB, FAC DoC, ENACOM, ICASA, SRRC, NOM-208, EAC DoC, EAC RoHS, RCM, UL Smark, CCC, FCC, UL, IC, KC, CE, UKCA, CB, MIC, PSE, NOM’
What is the default password for NovaStar TB30?
The default password for NovaStar TB30 is “12345678”.
NovaStar Multimedia Player Comparison
| Model | TB30 | TB50 | TB60 |
| Loading Capacity (pixel) | 650,000 | 1,300,000 | 2,300,000 |
| Output | 1x Primary 1x Backup |
2x Primary | 4x Primary |
| Maximum Resolution | Width 4096 Hight 4096 | Width 4096 Hight 4096 | Width 4096 Hight 4096 |
| Video Decoder | 4K 60fps : H.265/H.264/VP9 | 4K 60fps : H.265/H.264/VP9 | 4K 60fps : H.265/H.264/VP9 |
| Processing | 1GB RAM+16GB ROM | 1GB RAM+16GB ROM | 1GB RAM+16GB ROM |
| U disk expansion | Up to 128G | Up to 128G | Up to 128G |
| Synchronous Mode (HDMI) | No | Yes | Yes |
| HDMI Output | No | Yes | Yes |
| Audio Output | Yes | Yes | Yes |
| Optional 4G Module | Yes | Yes | Yes |
| Sync method | NTP, Lora | NTP, Lora | NTP, Lora |
| Control mode | RJ45, WiFi (AP&STA Switchable), 4G&5G Network |
RJ45, WiFi (AP&STA Switchable), 4G&5G Network |
RJ45, WiFi (AP&STA Switchable), 4G&5G Network |
| Backup | Yes | Yes (load half) | Yes (load half) |
| Support NovaCloud | Yes | Yes | Yes |
| Java SDK | Yes | Yes | Yes |
| Certification Information | CE, EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA | ||
| Operating System | Android 11 | Android 11 | Android 11 |
