Name: NovaStar MX_4xDP 1.2 input card
SKU: N-78-520-01
Availability: InStock

Descripción

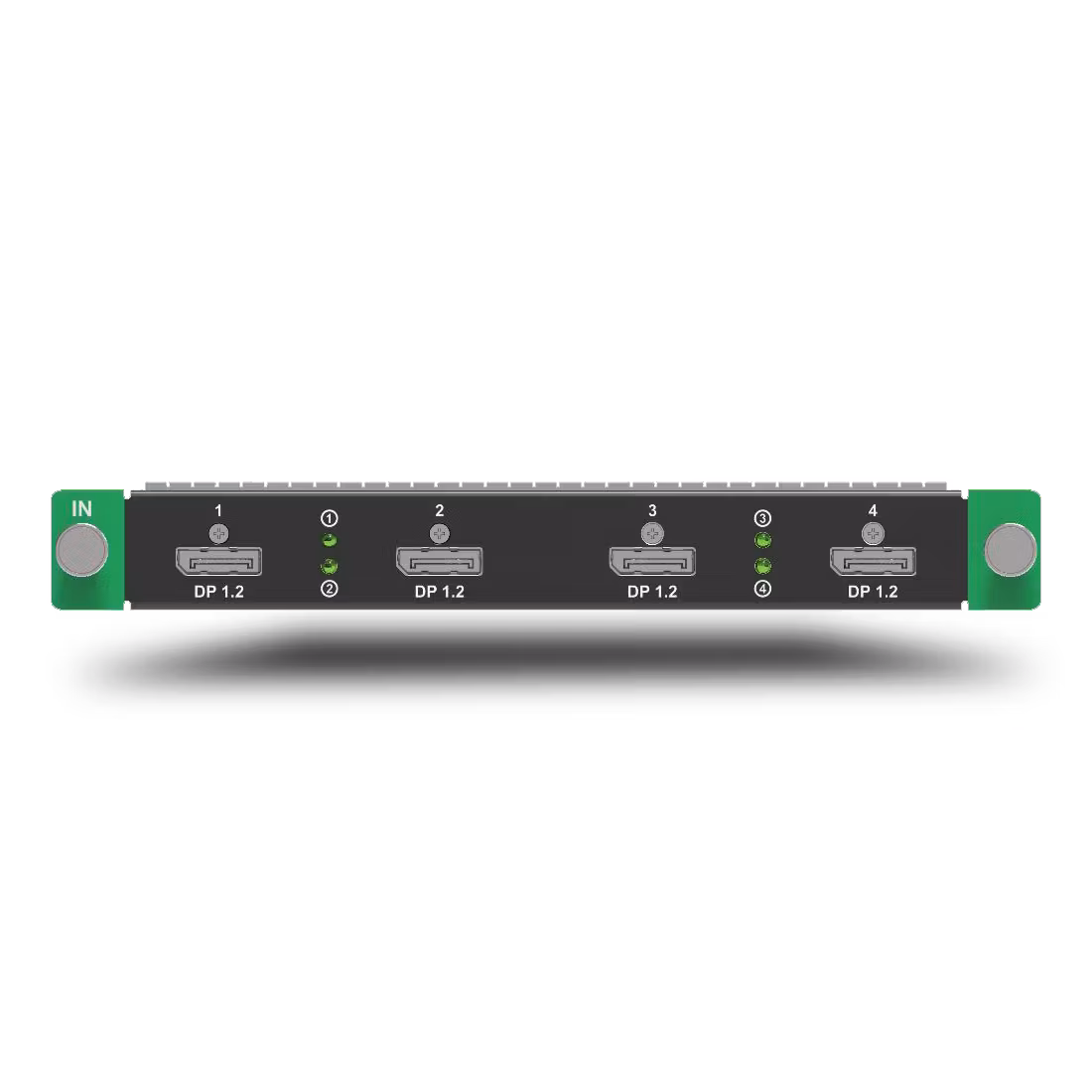

The MX_4xDP 1.2 input card features four DisplayPort 1.2 ports for seamless video input integration. Supporting resolutions up to 4096×2160@60Hz or 8192×1080@60Hz, it ensures exceptional visual clarity across various displays. With support for frame rates up to 240Hz and HDR10 compliance, it delivers smooth playback and vibrant imagery. HDCP 2.3 compatibility ensures secure content transmission, with flexible EDID management for custom input resolutions. Please note: Interlaced signal inputs are not supported.

Type

Qty

Description

DP 1.2

Resolution	Max resolution: 4096×2160@60Hz or 8192×1080@60Hz (Forced) Min resolution: 800×600@60Hz
Max width/height (Forced)	Max width: 8192 pixels (8192×1080@60Hz) Max height: 8192 pixels (1080×8192@60Hz)
Frame rates	23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
HDR	Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards. Support HLG.
EDID management	Support standard resolutions, up to 3840×2160@60Hz. Support custom input resolutions.
HDCP	Support HDCP 2.3, backwards compatible with HDCP2.2/ HDCP 1.4/ HDCP 1.3.
Interlaced signal inputs	Not supported.
