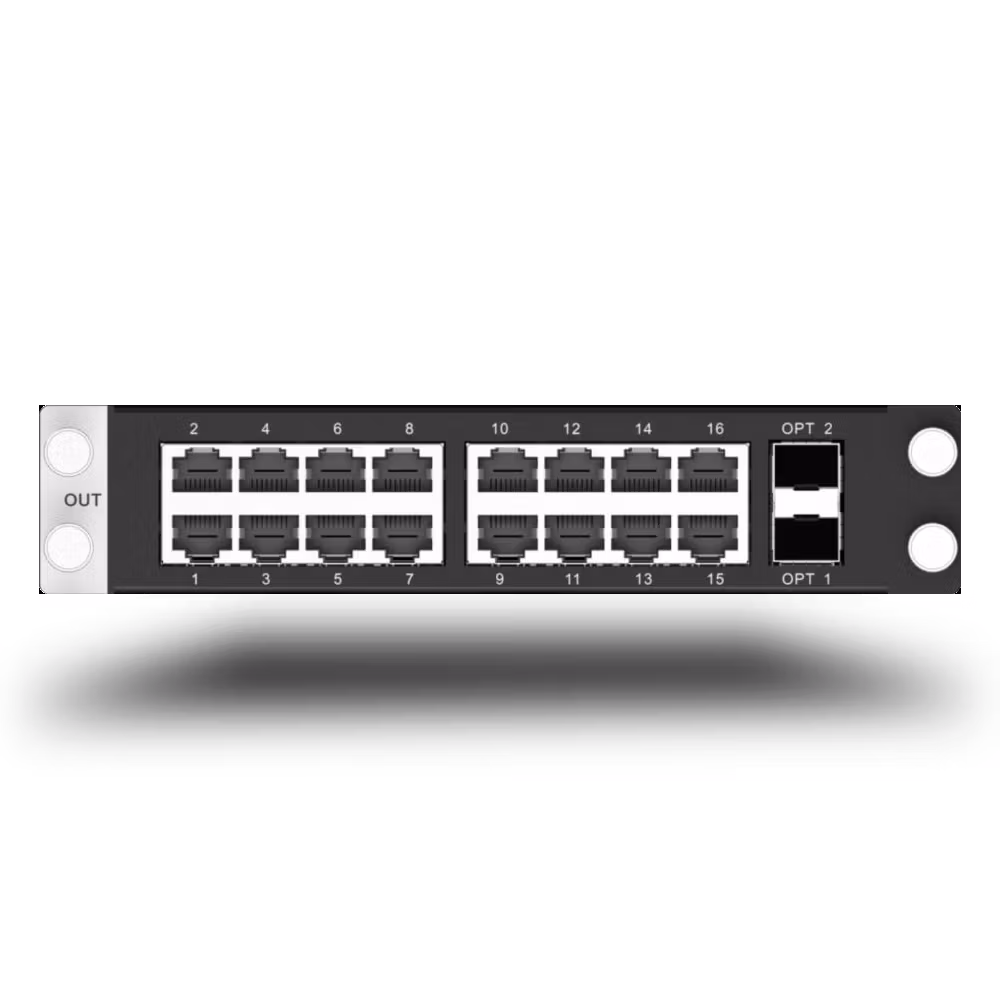

NovaStar H_16xRJ45+2xFiber sending card

LED 4K sending card can load up to 10,400,000 pixels (max. width: 10,240 pixels, max. height: 10,240 pixels).

This card occupies two slots.

Key Features

• 16x RJ45 Gigabit Ethernet outputs
  • Bit depth: 8-bit
    • A single Ethernet port loads up to 650,000 pixels.
  • Bit depth: 10-bit
    • A single Ethernet port loads up to 320,000 pixels.
  • Backup between Ethernet ports
  • Supports 144Hz output.
• 2x OPT outputs
  • Support both SMF and MMF transmission.
  • OPT 1 copies and outputs the data on Ethernet ports 1–8.
  • OPT 2 copies and outputs the data on Ethernet ports 9–16.
  • Supports 144Hz output.
• Specifications:
  • Weight: 600 g
  • Dimensions: 193 mm × 247.12 mm × 41.25 mm
  • Power consumption: 34.2 W
