Description

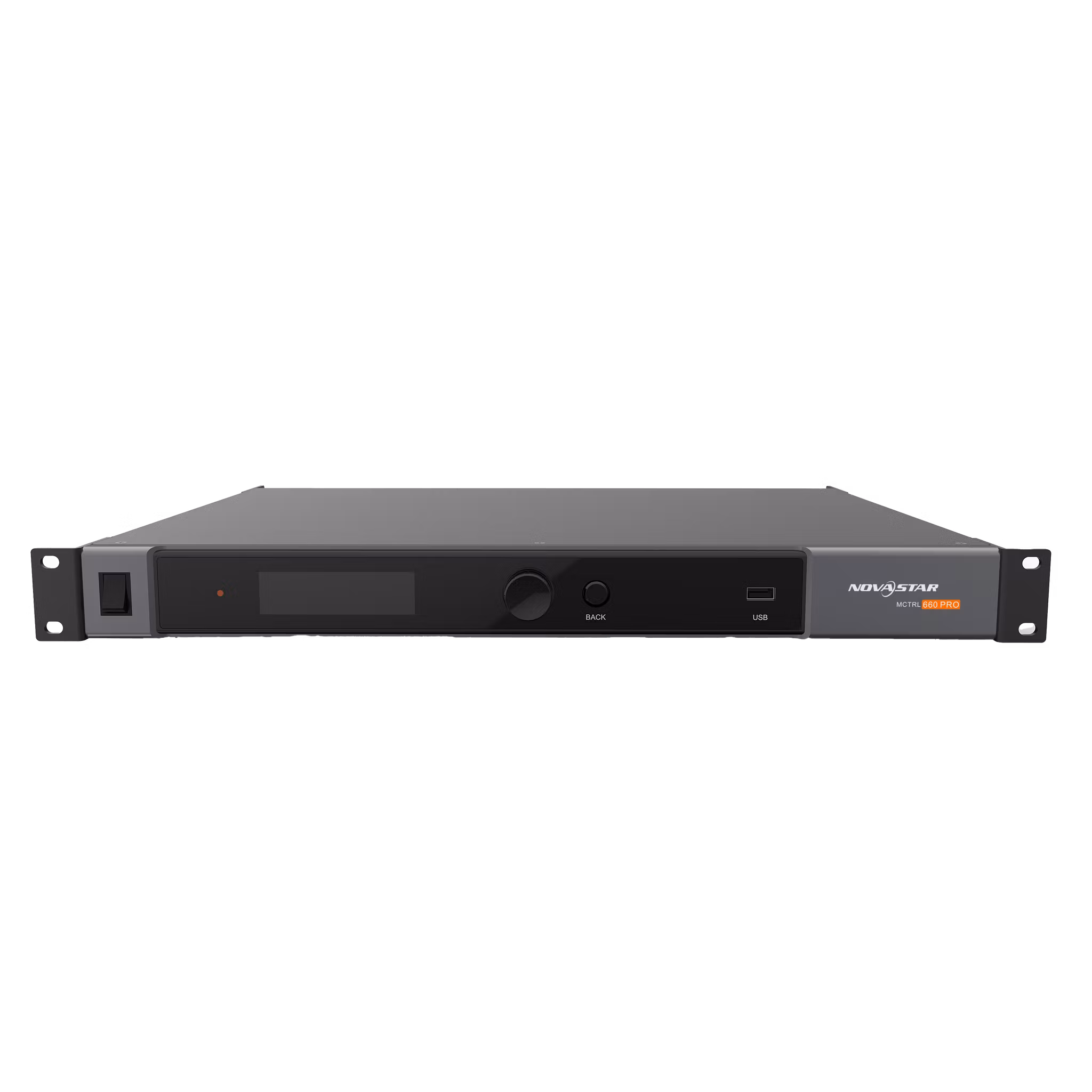

NovaStar MCTRL660 PRO is a professional LED display controller. A single controller supports resolutions up to 1920×1200@60Hz. Supporting image mirroring, this controller can present a variety of images and bring an amazing visual experience to users. It can work as a sending card and a fiber converter, and supports switching between the two modes, meeting more diversified market demands.
The MCTRL660 PRO is stable, reliable and powerful, dedicated to providing users with an ultimate visual experience. It can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring, Olympic Games, various sports centers, and much more.
Key Features
- Inputs
- 1x 3G-SDI
- 1x HDMI 1.4a
- 1x SL-DVI
- 6x Gigabit Ethernet outputs, 2x optical outputs
- 8-bit, 10-bit and 12-bit inputs
- Image mirroring Multi-angle image mirroring options allow for more cool and dazzling stage effects.
- Low latency. When low latency and input source sync are enabled, and cabinets are connected vertically, the delay between the input source and receiving card can be reduced to one frame.
- Individual gamma adjustment for RGB For 10-bit or 12-bit inputs, this function can individually adjust the red gamma, green gamma and blue gamma to effectively control image nonuniformity in low grayscale conditions and white balance offset, allowing for a more realistic image.
- Pixel level brightness and chroma calibration Work with NovaStar’s high-precision calibration system to calibrate the brightness and chroma of each pixel, effectively removing brightness differences and chroma differences, and enabling high brightness consistency and chroma consistency.
- Input monitoring
- One-click backup and restore
- Screen configuration on web
- Cascading of up to 8 MCTRL660 PRO devices
Certifications: FCC, CE, RoHS, IC
NovaStar LED Controller Comparison
| Model | MCTRL300 | MCTRL600 | MCTRL660 | MCTRL660 Pro | MCTRL700 | MCTRL R5 | MCTRL4K |
| Loading Capacity (pixel) | 1,300,000 | 2,300,000 | 2,300,000 | 2,300,000 | 2,300,000 | 4,140,000 | 8,800,000 |
| Video Source Depth | 8bit | 8 / 10 / 12bit | 8 / 10 / 12bit | 8 / 10 / 12bit | 8bit | 8 / 10bit | 8 / 10 / 12bit |
| Maximum Input | Max Width: 3840×600@60Hz Max Height: 548×3840@60Hz Min: 800×600@60Hz |
Max Width: 3840×600@60Hz Max Height: 548×3840@60Hz Min: 800×600@60Hz |
Max Width: 3840×600@60Hz Max Height: 548×3840@60Hz Min: 800×600@60Hz |
Max Width: 3840×600@60Hz Max Height: 800×2560@60Hz Min: 800×600@60Hz |
Max Width: 3840×600@60Hz Max Height: 548×3840@60Hz Min: 800×600@60Hz |
Max Width: 3840×1080@60Hz Max Height: 800×3840@60Hz Min: 800×600@60Hz |
Max Width: 7680×1080@60Hz Max Height: 1080×7680@60Hz Min: 800×600@60Hz |
| Video Input | 1x DVI | 1x DVI 1x HDMI |
1x HDMI / DVI 1x HDMI LOOP 1x DVI LOOP |
1x DVI IN 1x DVI LOOP 1x HDMI IN 1x HDMI LOOP 1x 3G-SDI IN 1x 3G-SDI LOOP |
1x DVI 1x DVI OUT 1x HDMI 1x HDMI LOOP |
1x 6G-SDI 1x HDMI1.4 2x Dual DVI |
1x DP1.2 1x HDMI2.0 2x Dual DVI |
| Audio Input | 1x 3.5mm Audio Port | 1x 3.5mm Audio Port HDMI Audio |
1x 3.5mm Audio Port HDMI Audio |
None | 1x 3.5mm Audio Port HDMI Audio |
None | None |
| Control Method | 1x USB | 1x USB | 1x USB | 1x ETHERNET 1x USB IN 1x USB OUT |
1x USB RJ45 IN RJ45 OUT |
1x ETHERNET 1x USB IN 1x USB OUT |
1x USB 1x Network Port |
| Output | 2x Network Port | 4x Network Port | 4x Network Port | 6x Network Port 2x Fiber Output |
6x Network Port | 8x Network Port 2x Fiber Output |
16x Network Port 4x Fiber Output |
| Light Sensor | 1x Light Sensor Port | 1x Light Sensor Port | None | None | None | None | None |
| LCD Control Panel | No | No | Yes | Yes | No | Yes | Yes |
| LAN Debugging | No | No | No | Yes | No | Yes | Yes |
| Hardware Brightness & Color Adjustment | No | No | Yes | Yes | No | Yes | Yes |
| Low Latency | No | No | No | Yes | No | No | Yes |
| 3D | No | No | No | No | No | No | Yes |
| Free Rotation | No | No | No | No | No | Yes (With A8s-N/A10s Plus-N) | No |
| Mirror Image | No | No | No | Yes | No | No | No |
| GENLOCK | No | No | No | Yes | No | Yes | Yes (Offset Adjustable) |
| HDR | No | No | No | No | No | No | Yes |
| Optical Fiber Port | No | No | No | Yes | No | Yes | Yes |
| Sync Splice Mode | No | No | No | No | No | No | Yes |
| Control Software | NovaLCT | NovaLCT | NovaLCT | NovaLCT | NovaLCT | NovaLCT | NovaLCT |
