Description

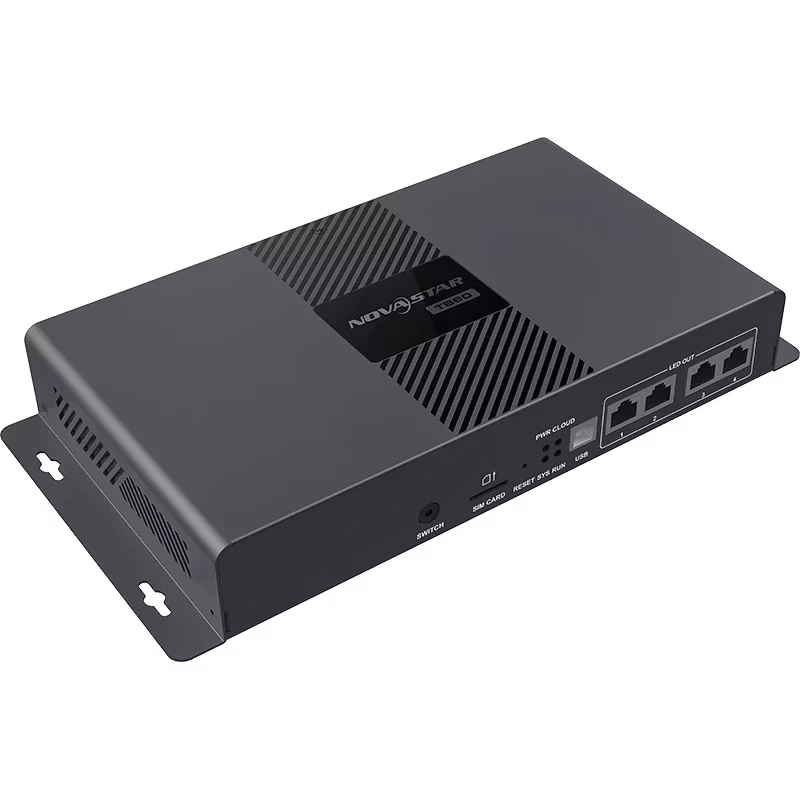

NovaStar TB60 is a new generation of multimedia player created for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB60 enables users to manage LED displays from an Internet-connected device anywhere, anytime.
Support for multi-screen synchronous playback and synchronous and asynchronous modes makes this multimedia player a perfect fit for a wide range of applications.
Thanks to its reliability, ease of use, and intelligent control, the TB60 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, shelf displays, and much more.
Key Features
- Output:
- Loading capacity up to 2,300,000 pixels with maximum dimensions of 4096×4096
- 4x Gigabit Ethernet ports, configurable as primary/backup pairs
- 1x Stereo audio connector with fixed internal sample rate and variable external sample rates
- 1x HDMI 1.4 connector for output (supports 1080p@60Hz with HDMI loop)
- Input:
- 1x HDMI 1.4 connector for synchronous mode scaling
- 2x sensor connectors for environmental sensors
- Control:
- 1x USB 3.0 (Type A) port for USB playback and firmware upgrades
- 1x USB (Type B) port for control computer connection
- 1x Gigabit Ethernet port for control computer or network connection
- Performance:
- Quad-core ARM A55 processor @1.8 GHz, supporting H.264/H.265 4K@60Hz video decoding
- 1 GB RAM, 16 GB internal storage
- Flawless playback up to 2x 4K, 6x 1080p, 10x 720p, or 20x 360p videos
- Functionality:
- All-round control plans for content publishing and screen control from various devices
- Switching between Wi-Fi AP and Wi-Fi STA modes for flexible connectivity
- Synchronous and asynchronous modes for internal and HDMI video sources
- Synchronous playback across multiple screens with various time synchronization methods
- Support for optional 4G modules with network connection priority hierarchy
Certifications: NBTC, IMDA, PSB, FAC DoC, ENACOM, ICASA, SRRC, EAC DoC, EAC RoHS, RCM, UL Smark, CCC, FCC, UL, IC, KC, CE, UKCA, CB, MIC, PSE, NOM
NovaStar Multimedia Player Comparison
| Model | TB30 | TB50 | TB60 |
| Loading Capacity (pixel) | 650,000 | 1,300,000 | 2,300,000 |
| Output | 1x Primary 1x Backup |
2x Primary | 4x Primary |
| Maximum Resolution | Width 4096 Hight 4096 | Width 4096 Hight 4096 | Width 4096 Hight 4096 |
| Video Decoder | 4K 60fps : H.265/H.264/VP9 | 4K 60fps : H.265/H.264/VP9 | 4K 60fps : H.265/H.264/VP9 |
| Processing | 1GB RAM+16GB ROM | 1GB RAM+16GB ROM | 1GB RAM+16GB ROM |
| U disk expansion | Up to 128G | Up to 128G | Up to 128G |
| Synchronous Mode (HDMI) | No | Yes | Yes |
| HDMI Output | No | Yes | Yes |
| Audio Output | Yes | Yes | Yes |
| Optional 4G Module | Yes | Yes | Yes |
| Sync method | NTP, Lora | NTP, Lora | NTP, Lora |
| Control mode | RJ45, WiFi (AP&STA Switchable), 4G&5G Network |
RJ45, WiFi (AP&STA Switchable), 4G&5G Network |
RJ45, WiFi (AP&STA Switchable), 4G&5G Network |
| Backup | Yes | Yes (load half) | Yes (load half) |
| Support NovaCloud | Yes | Yes | Yes |
| Java SDK | Yes | Yes | Yes |
| Certification Information | CE, EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA | ||
| Operating System | Android 11 | Android 11 | Android 11 |
